Venkovní osvětlení
LED pouliční osvětlení AL 90
Parametry
- Power Consumption : 28W( 36W)
- Working Voltage : 85-264VAC, 12 or 24VAC/DC
- Luminous Flux : 2,100lm (equal to 75w HPS Lamp
on 7m height pole or 150w HPS lamp on 6m Height Pole)
- Certificates : CE, RoHS (UL Pending)
- Special Features : Designed to replace the
traditional E40 HPS lamp in the Cobrahead directly.
LED pouliční osvětlení AL 1
Parametry
- Power Consumption : 28W( 36W)
- Working Voltage : 85-264VAC,12 or 24VAC/DC
- Luminous Flux : 2,100lm (equal to 75w HPS Lamp
on 7m height pole or 150w HPS lamp on 6m Height Pole)
- Certificates : CE, RoHS (UL Pending)
- Special Features : Integrated LED Street Light with
Heater and Lamp Fixture all-in-one, IP65.
LED pouliční osvětlení AL 2
Parametry
- Power Consumption : 56W (75W)
- Working Voltage : 85-264VAC, 12 or 24VAC/DC
- Luminous Flux : 4,200lm (can replace the 150w or 250W HPS Lamp)
- Certifications : CE, RoHS (UL Pending)
- Special Features : Integrated LED Street Light with
Heater and Lamp Fixture all-in-one, IP65.
LED pouliční osvětlení AL 4
Parametry
- Power Consumption : 112W
- Working Voltage : 85-264VAC, 12 or 24VAC/DC
- Luminous Flux : 8,400lm
- Certifications : CE, RoHS (UL Pending)
- Special Features : Integrated LED Street Light with
Heater and Lamp Fixture all-in-one, IP65.
LED pouliční osvětlení AL 6
Parametry
- Power Consumption : 168W
- Working Voltage : 85-264VAC, 12 or 24VAC/DC
- Luminous Flux : 12,800lm (can replace the 400w HPS Lamp)
- Certifications : CE, RoHS (UL Pending)
- Special Features : Integrated LED Street Light with
Heater and Lamp Fixture all-in-one, IP65.
LED pouliční osvětlení AL 8
Parametry
- Power Consumption : 224W( 300W)
- Working Voltage : 85-264VAC, 12 or 24VAC/DC
- Luminous Flux : 16,800lm
- Certifications : CE, RoHS (UL Pending)
- Special Features : Integrated LED Street Light with
Heater and Lamp Fixture all-in-one, IP65.

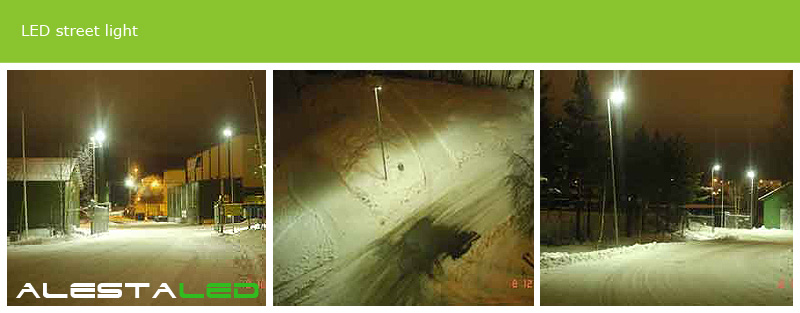

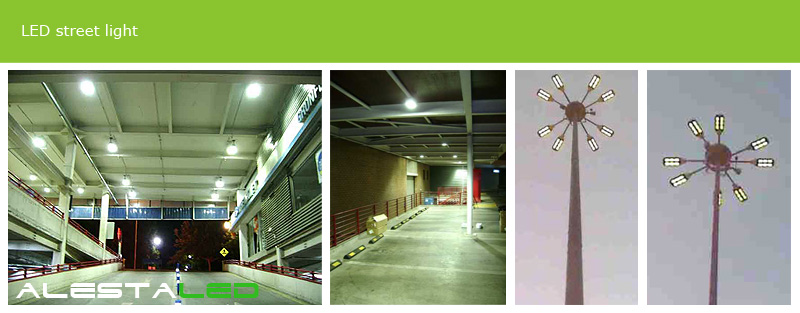

Ukázky LED pouličního osvětlení
LED underground light AL-10
Parametry
- Input Voltage: 12/24VDC
- LED Qty:3*1W/3*3W
- Light Source: High Power LED
- Beam Angle:25/45 Degree
- IP Rate:IP67
- Color: R/G/B/W/Y
- Size: 108*96.5mm
- Net weight:0.85Kg
LED underground light AL-03
Parametry
- Input Voltage: 12/24VDC
- LED Qty:1*1W/1*3W
- Light Source: High Power LED
- Beam Angle:25/45 Degree
- IP Rate:IP67
- Color: R/G/B/Y/DW/CW/WW/RGB
- Size: Dia60mm H68mm
- Net weight:0.34Kg
LED underground light AL-08
Parametry
- Input Voltage: 110/220VAC
- LED Qty:5Leds
- Light Source: Ultra bright LED
- Beam Angle:60 Degree
- IP Rate:IP67
- Color: R/G/B/W/Y
- Size: 65*65*71mm
- Net weight:0.41Kg
LED underground light AL-14
Parametry
- Input Voltage: 110/220VAC
- LED Qty:52Pcs LEDs
- Light Source: Ultra bright LED
- Beam Angle:25/45 Degree
- IP Rate:IP67
- Color: R/G/B/W/Y
- Size: Dia165*83mm
- Net weight:1.75 Kg
LED underground light AL-20
Parametry
- Input Voltage: 24VDC
- LED Qty:1*3W
- Light Source: High Power LED
- Beam Angle:25/45 Degree
- IP Rate:IP67
- Color: R/G/B/W/Y
- Size: Dia165*83mm
- Net weight:1.78 Kg
LED underground light AL-19
Parametry
- Input Voltage: 110/220VDC
- LED Qty:24Pcs
- Light Source: Ultra Bright LEDs
- Beam Angle:25/45 Degree
- IP Rate:IP67
- Color: R/G/B/W/Y
- Size: Dia152*118mm
- Net weight:1.65Kg
LED underground light AL-16
Parametry
- Input Voltage: 24VDC
- LED Qty:6*3W
- Light Source: High Power LED
- Beam Angle: 45 Degree
- IP Rate:IP67
- Color: RGB 3 in 1
- Size: Dia162mm H60.5mm
- Net weight:1.53Kg
LED AL-R01
Parametry
- Input Voltage : 120V/240VAC
- LED Qty : doplnit
- Color : R/Y/B/G/CW/DW/WW
- Beam Angle : 60
- Water Proof : IP65
LED AL-R02
Parametry
- Input Voltage : 120V/240VAC
- LED Qty : doplnit
- Color : R/Y/B/G/CW/DW/WW
- Beam Angle : 60
- Water Proof : IP65
LED AL-R03
Parametry
- Input Voltage : 120V/240VAC
- LED Qty : doplnit
- Color : R/Y/B/G/CW/DW/WW
- Beam Angle : 60
- Water Proof : IP65
LED AL-R04
Parametry
- Input Voltage : 120V/240VAC
- LED Qty : doplnit
- Color : R/Y/B/G/CW/DW/WW
- Beam Angle : 60
- Water Proof : IP65
LED tunelové světlo AL-D2
Parametry
- Power Consumption : 56W
- Luminous Flux : 4,200lm
- Working Voltage : 85-264VAC
- Dimensions(mm) : 325(L) × 210(W) × 100(H)
- Life Spam : >50,000 Hours
- IP Rating : IP65
- Certificates : CE, RoHS, UL Pending
LED AL-6W3
Parametry
- Input Voltage : 110V/220V
- Output Power : 20W
- Light Source : 6*3W LED
- Color:R/Y/B/G/CW/DW/WW
- W/Size : 280×210×180mm
- Beam angle : 15°90°
- IP Rate : IP65
- Net weight:1.78 Kg
LED AL-12W3
Parametry
- Input Voltage: 100~240VAC 50/60Hz
- LED Qty:12*3W
- Light Source: High Power LED
- Beam Angle:15,90 Degree
- Projecting range:10m-40m
- IP Rate:IP65
- Color: R/G/B/W/Y
- Size: 280*210*180mm
LED AL-24W
Parametry
- Input Voltage : 110V/220V
- Output Power : 30W
- Light Source : 24*1W LED
- Color:R/Y/B/G/CW/DW/WW/RGB
- W/Size : 260×200×166mm
- Beam angle : 15°90°
- IP Rate : IP65 DMX512 Optional Item
LED AL-36W
Parametry
- Input Voltage: 100~240VAC 50/60Hz
- LED Qty:36W
- Light Source: High Power LED
- BBeam Angle:15,90 Degree
- Projecting range:10m-40m
- IP Rate:IP65
- Color: R/G/B/W/Y/RGB
- Size: 394*437*280mm
- Net weight:7.2Kg
LED AL-48W
Parametry
- Input Voltage : 110V/220V
- Output Power : 50W
- Light Source : 48*1W LED
- Color:R/Y/B/G/CW/DW/WW/RGB
- W/Size : 394×437×280mm
- Beam angle : 15°90°
- IP Rate : IP65 DMX512 Optional Item
LED AL-R3W
Parametry
- Input Voltage:DC12V
- Output Power:3W
- Light Source:3*1W/3*3W LED
- Color:R/Y/B/G/CW/DW/WW/RGB
- W/Size:Φ68*W56*H115mm
- Beam angle:15°45°
- IP Rate:IP65
- Net weight:1.78 Kg
LED AL-R9W
Parametry
- Input Voltage:DC24V
- Output Power:9W
- Light Source:9*1W LED
- Color:R/Y/B/G/CW/DW/WW/RGB
- W/Size:Φ117*52*162mm
- Beam angle:15°90°
- IP Rate:IP65
LED AL-R18W
Parametry
- Input Voltage:DC12V
- Output Power:24W
- Light Source:18*1W LED
- Color:R/Y/B/G/CW/DW/WW/RGB
- W/Size:Φ150*60*198MM
- Beam angle:15°45°
- IP Rate:IP65
